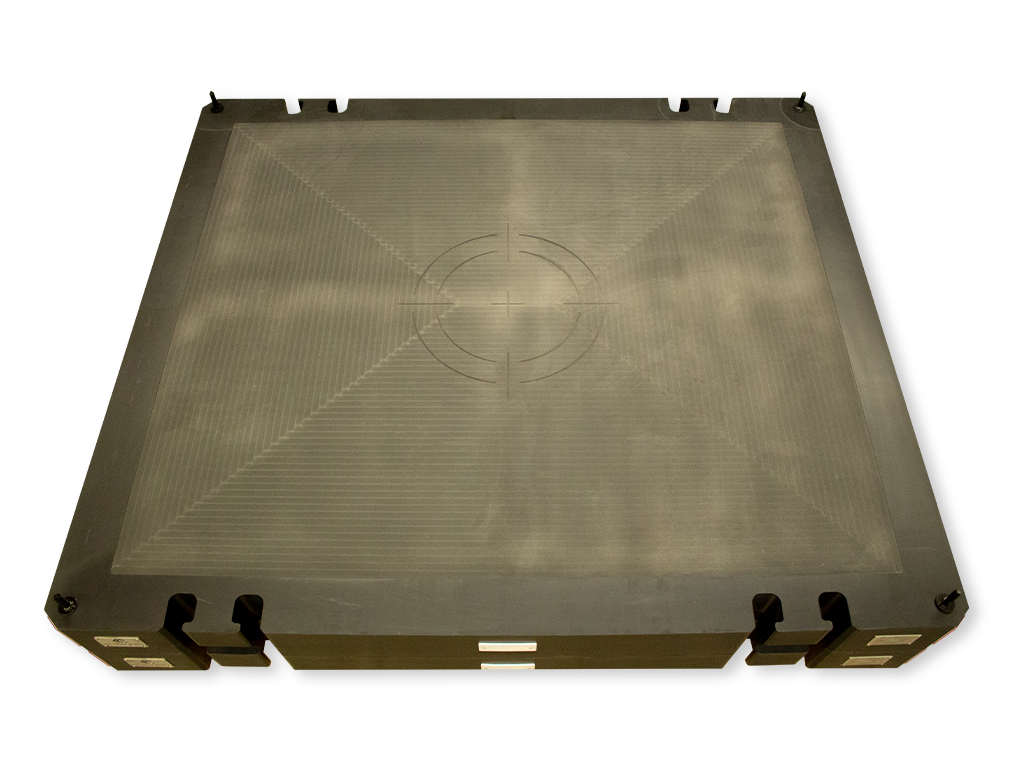

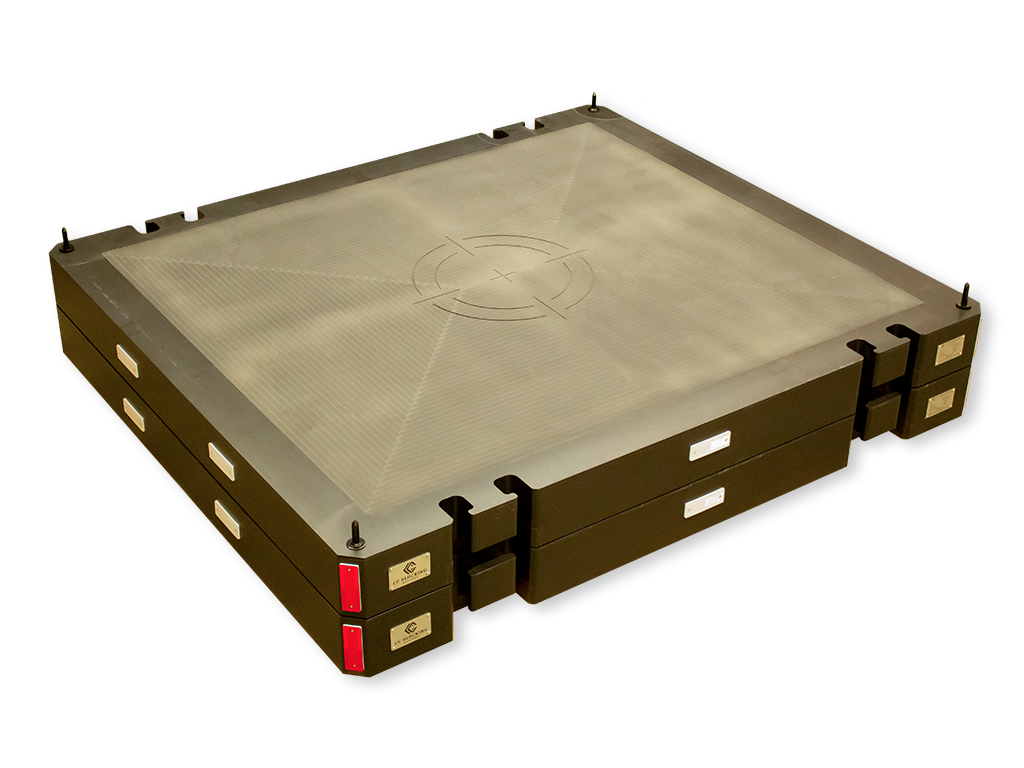

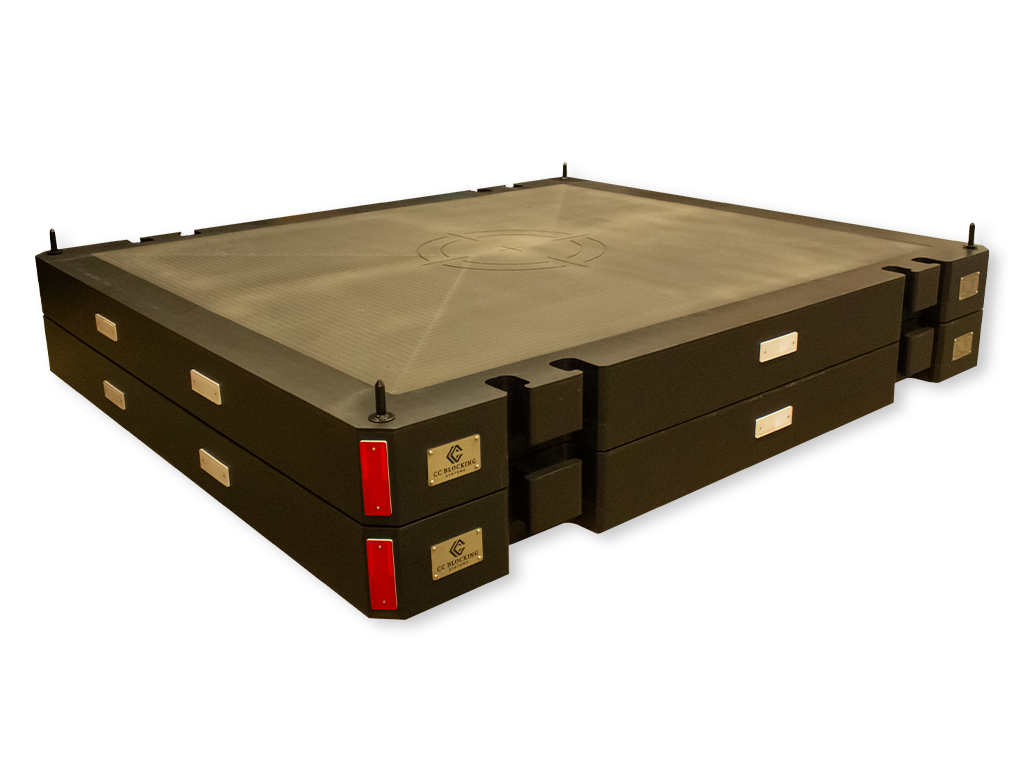

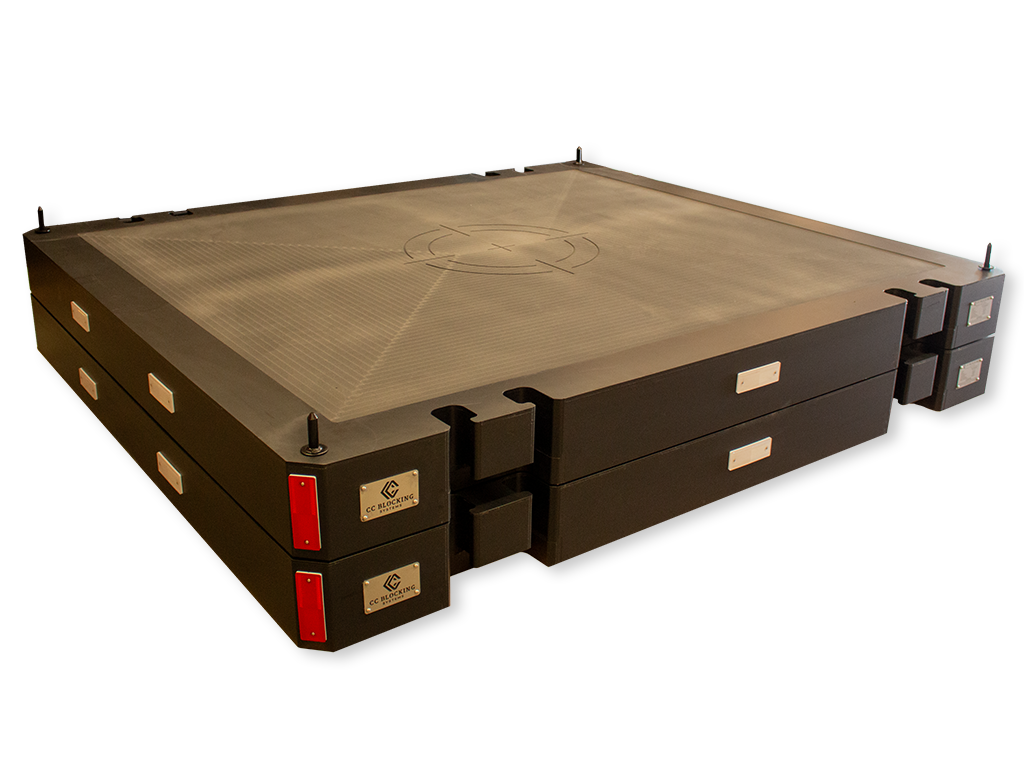

Engineered Grizzly Max Crane Pads
Our Grizzly Max Crane Pads are setting a new standard in the industry. Manufactured with the precision and attention to detail our clients trust, these pads are built from 100% Virgin UHMW, delivering unmatched strength and durability while being significantly lighter than traditional steel pads. Engineered to resist chemicals, wear, impact and provides a maximum stability along with its reliability for the heaviest of equipment in your crane fleet.
Categories: Grizzly Max Crane Pads
description
Crafted from advanced materials, our Grizzly Max Crane Pads deliver an outstanding balance of impact strength, wear resistance, and chemical durability. Unlike traditional options, these composite pads provide superior grip for stable crane operation while protecting pavement and other sensitive surfaces from damage.
Engineered for demanding conditions, they are highly resistant to water, corrosion, and conductivity, making them ideal for environments where impact, scratching, or exposure to the elements is a concern. Each pad is designed with built-in lifting trunnions for easy handling, ensuring convenience for every crane operator.
Available in 4 different sizes.
Capacity & Temperature Range:
The Grizzly Max Pad is built for strength, with working load limits ranging from 140 tons (285,000 lbs.) up to 300 tons (600,000 lbs.). Designed to perform in extreme conditions, it operates reliably in temperatures from -40℃ to 60℃ (-40℉ to 140℉). With its high capacity and durability, this outrigger mat is the perfect choice for heavy machinery in the toughest environments.
Range of sizes & thicknesses:
- 40 x 60 x 6.00″ | 285,000 lbs. loading capacity
- 72 x 96 x 6.00″ | 385,000 lbs. loading capacity
- 84 x 96 x 8.00″ | 550,000 lbs. loading capacity
- 96 x 120 x 8.00″ | 600,000 lbs. loading capacity
