Engineered UHMW Outrigger Pads
Our UHMW composite outrigger pads have a material that offers a superior combination of impact strength, wear, and chemical resistance. In addition, composite pads have better grip for steady crane operation, and protects the pavement or any other surface on which your crane rests.
Categories: UHMW Outrigger Pads
description
Our Engineered UHMW composite outrigger pads have a material that offers a superior combination of impact strength, wear, and chemical resistance. In addition, composite pads have better grip for steady crane operation, and protects the pavement or any other surface on which your crane rests.
It is ideal for impact or scratch sensitive materials. This material is exceptionally resistant to water, conductivity, and corrosion. UHMW pads come in square, rectangle, and round shapes.

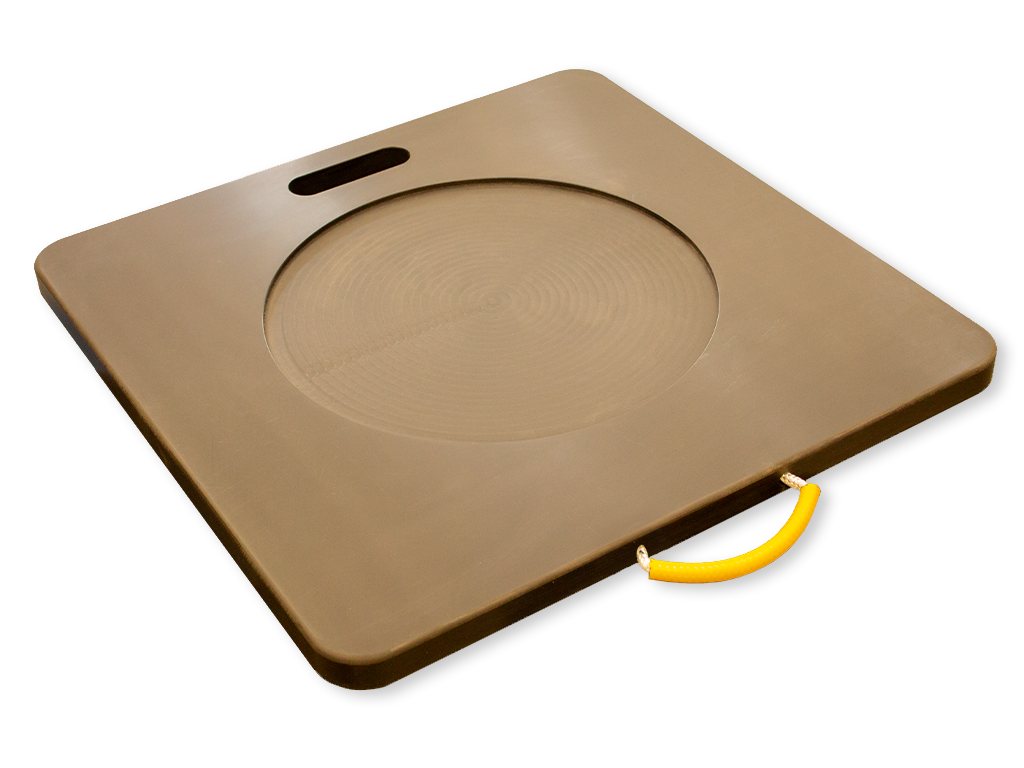

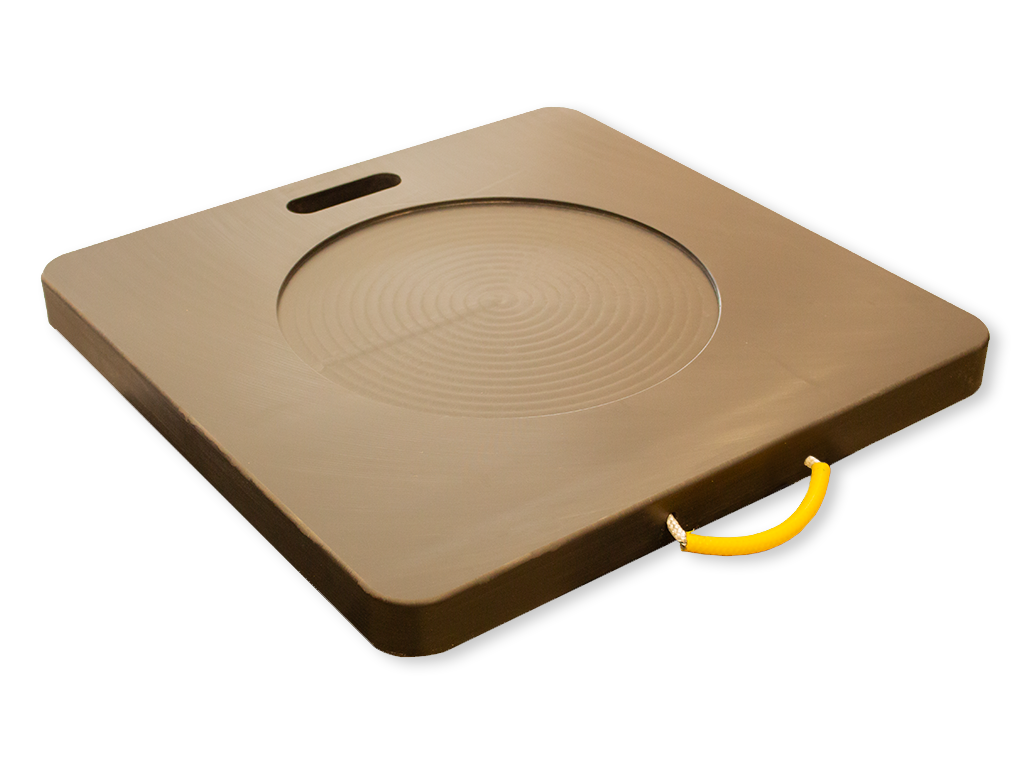

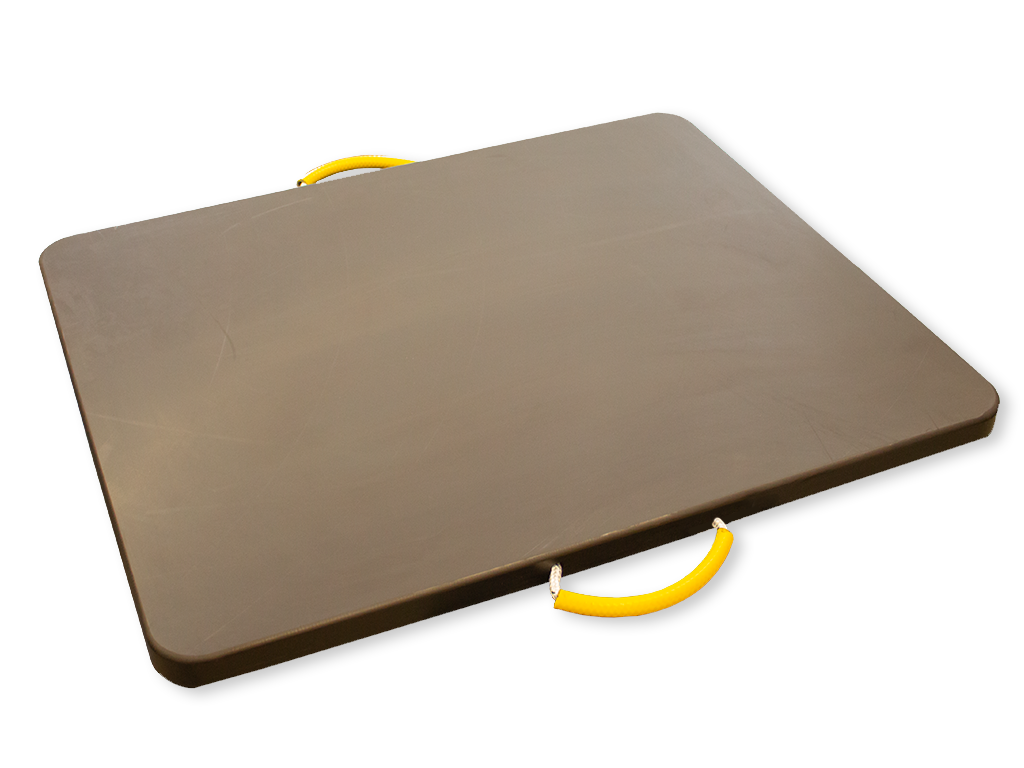

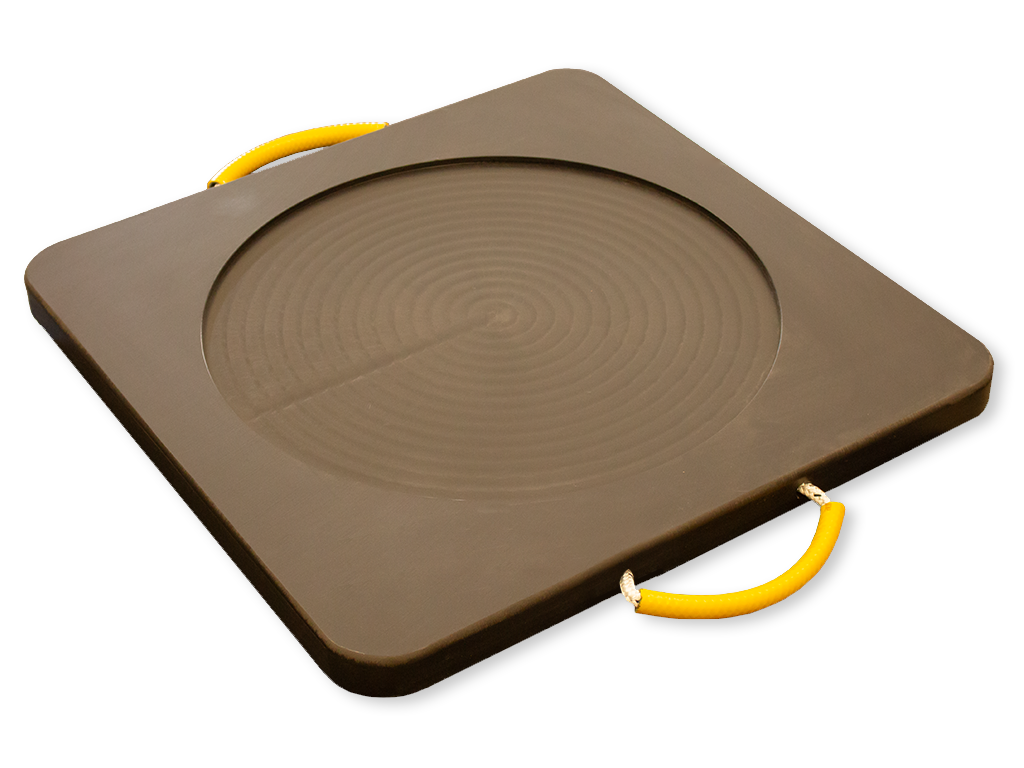

All UHMW pads can come with a built-in handle, nylon rope or any other customer-preferred handle. Depending on sizes, more handles are added.
Range of sizes & thicknesses:
- Common Sizes for UHMW are 12’’, 18’’, 24’’, 30’’, 32’’, 36’’, 42’’, 48’’, and 60’’ (Square, Round, Rectangle).
- Thicknesses are 1’’, 1 ½‘’, and 2’’.
Engineered Load Capacity:
| Thickness | Pad Size | 45 Degree Load | Vertical Load | Pad Weight |
|---|---|---|---|---|
| 1″ Square | 18 X 18 | 22 500 lbs | 45 000 lbs | 12 lbs |
| 1″ Square | 24 X 24 | 25 000 lbs | 50 000 lbs | 21 lbs |
| 1″ Square | 30 X 30 | 35 000 lbs | 70 000 lbs | 31 lbs |
| 1″ Square | 36 X 36 | 40 000 lbs | 80 000 lbs | 48 lbs |
| 1″ Square | 48 X 48 | 49 000 lbs | 130 000 lbs | 81 lbs |
| 1″ Round | 30″ Dia | 27 500 lbs | 55 000 lbs | 24 lbs |
| 1″ Round | 36″ Dia | 37 500 lbs | 75 000 lbs | 38 lbs |
| 1″ Round | 42″ Dia | 42 500 lbs | 85 000 lbs | 56 lbs |
| 1″ Round | 48″ Dia | 40 000 lbs | 99 000 lbs | 64 lbs |
| 1.5″ Square | 18 X 18 | 22 500 lbs | 45 000lbs | 16 lbs |
| 1.5″ Square | 24 X 24 | 35 000 lbs | 55 000 lbs | 31 lbs |
| 1.5″ Square | 30 X 30 | 42 000 lbs | 75 000 lbs | 48 lbs |
| 1.5″ Square | 36 X 36 | 44 000 lbs | 95 000 lbs | 70 lbs |
| 1.5″ Square | 48 X 48 | 51 000 lbs | 130 000 lbs | 125 lbs |
| 1.5″ Round | 30″ Dia | 30 000 lbs | 60 000 lbs | 35 lbs |
| 1.5″ Round | 36″ Dia | 40 000 lbs | 80 000 lbs | 53 lbs |
| 1.5″ Round | 48″ Dia | 40 000 lbs | 99 000 lbs | 98 lbs |
| 2″ Square | 18 X 18 | 31 000 lbs | 55 000 lbs | 22 lbs |
| 2″ Square | 24 X 24 | 40 000 lbs | 60 000 lbs | 40 lbs |
| 2″ Square | 30 X 30 | 43 000 lbs | 80 000 lbs | 50 lbs |
| 2″ Square | 36 X 36 | 44 000 lbs | 97 000 lbs | 94 lbs |
| 2″ Square | 48 X 48 | 55 000 lbs | 139 000 lbs | 165 lbs |
| 2″ Round | 30″ Dia | 32 500 lbs | 65 000 lbs | 54 lbs |
| 2″ Round | 36″ Dia | 35 000 lbs | 71 000 lbs | 72 lbs |
| 2″ Round | 48″ Dia | 42 000 lbs | 99 000 lbs | 135 lbs |
| 2.5″ Square | 30 X 30 | 50 000 lbs | 100 000 lbs | 60 lbs |
